Specification: Probe :AUTO,F probe, N probe(FE/NFE) Measuring principle: Magnetic induction ,Eddy current effect Measuring range:0~2000um Precision:±(3%+1um) Resolution:0um~999um(1um) Zero calibration:Support Statistics:Average, minimum, maximum, number Unit:um,mm,mils Minimum convex Radian:5mm Minimum concave Radian:25mm Minimum measured area:Diameter 20mm Minimum substrate thickness:0.2mm,0.05mm Maximum measuring speed:2 readings per second Power supply:2*1.5V 7 battery Operating environment:Temperature:0 ~ 50 °C 20 ~ 90%rh (non-condensed) Preservation environmen:Temperature:-10 ^ 60 °C 20 ^ 90%rh (non-condensation) Measurement Step Step 1. Prepare the parts to be tested. Step 2. Stay away from the metal object at least 2 cm, press the switch key to turn on. Note: it is suggested that the instrument should be zeroed with reference to "zero calibration" before testing. Step 3. The probe is placed vertically and quickly on the surface to be measured until the drop is heard,and the measured value is displayed on the screen, and then the probe is lifted at least 2 cm away from the part to be measured, and the next measurement can be carried out.Note: if the automatic shutdown function is turned on and there is no operation within 3 minutes, the instrument will automatically shut down. Package Included: 1*Coating Thickness Gauge 1*Lanyard 6*Calibration film (0.05/ 0.25/ 0. 10/ 0.50/ 1. 00/ 2. 00mm) 1*Substrate 1* Instruction manual

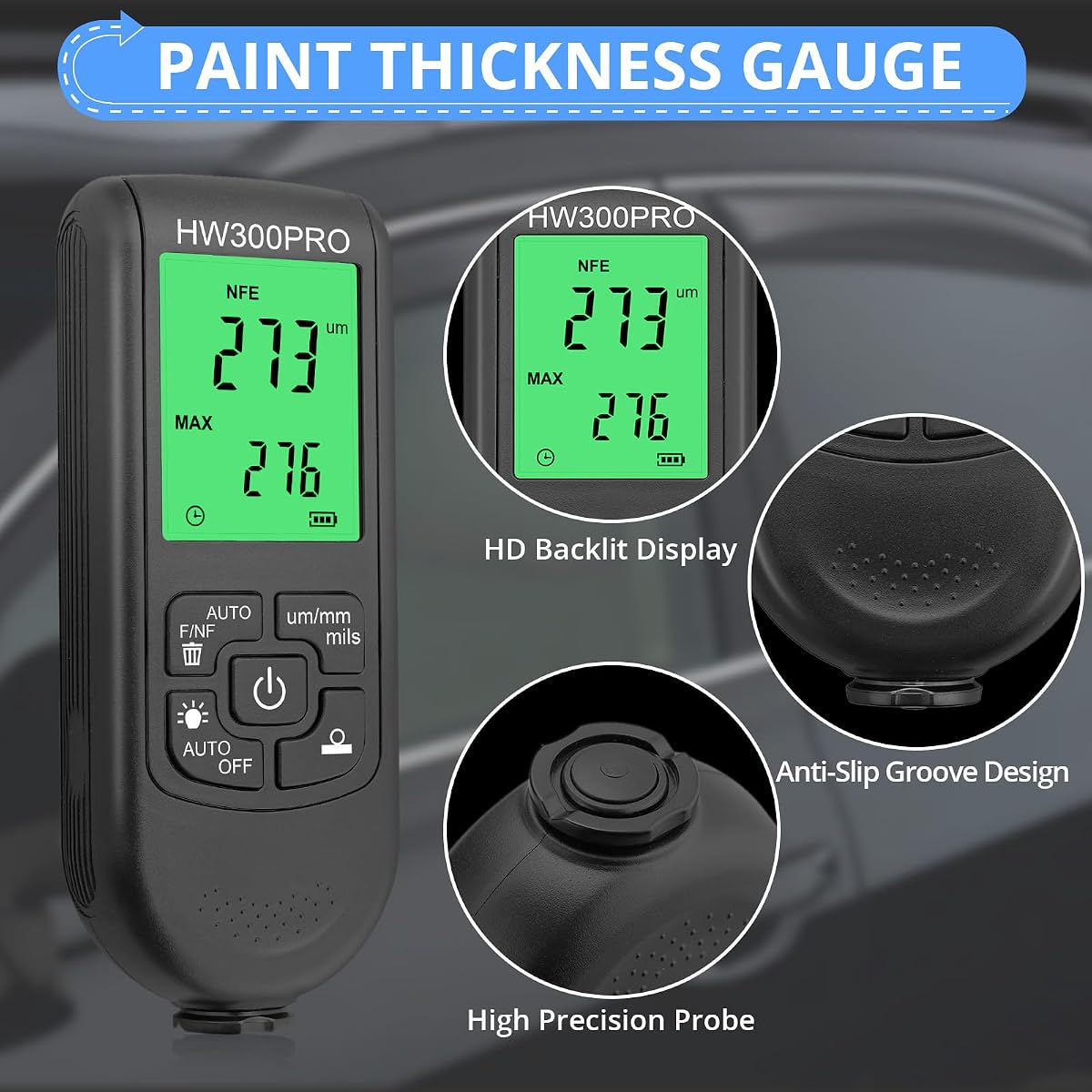

• 【3 MEASUREMENT UNITS&BACKLIGHT】 Coating Thickness Gauge Have Three Units Of Micron, Millimeter, And Mils Can Be Cut Through The Button, Which Can Quickly And Accurately Measure The Coating Or Electroplating Thickness On Almost All Metal Surfaces.The Paint Meter Have High-Definition Display Screen Is Set With Background Light, It Is Easy To Read Data When You Are In Any Venue, Can Be Placed Anywhere And Easy To Carry.
• 【ZERO CALIBRATION & TROUBLESHOOTING】In Order To Improve The Test Accuracy, It Is Suggested That The Instrument Should Be Calibrated To Zero, If A Significant Anomaly Is Found In The Instrument, The User Can Unplug The Battery For 2 Seconds,Reinstall The Battery, And Then Boot And Try Again.
