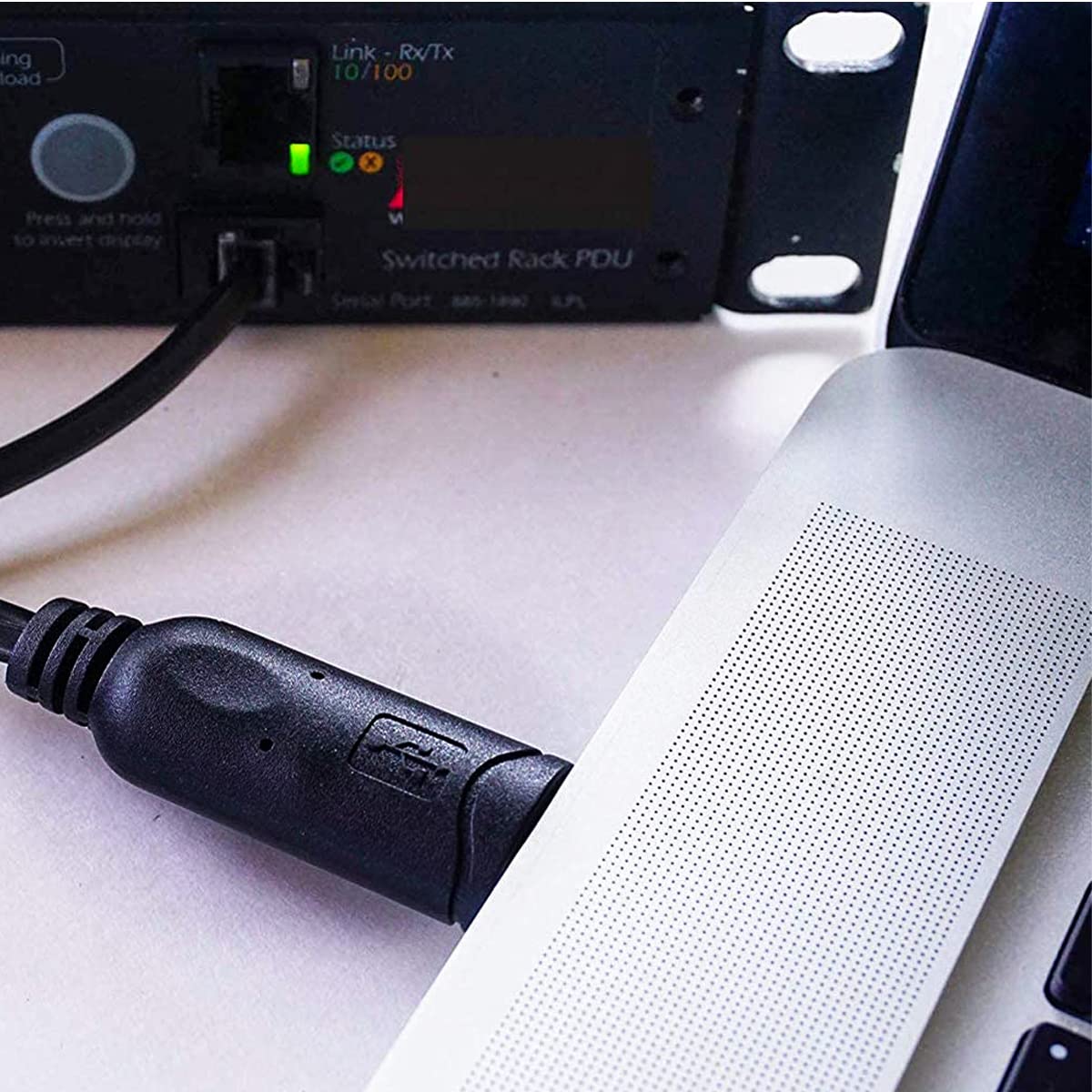

This USB to RJ11/RJ12-RS232 serial cable is 6 feet long. Built-in Silicon Labs CP2102N serial chip and RS232 chip, fully compatible with SH-RJ12A (ASIN: B07R2L22GW) Specification: Model: SH-RJ12B. Main chip: Silicon Labs CP2102N Pin Definition: Gnd, Tx, Rx, Gnd Communication protocol: RS232 Connectors: USB Type A, RJ12/RJ11 (6P4C) The maximum speed: 2 Mbps Cable length: 1.8m/5.9ft Plug & Play after a single driver installation; Precautions: Although this data cable can transmit RS232 signals, it may not be compatible with your device. Because the line sequence of this data line is: NULL, Gnd, Tx, Rx, GND, NULL (see picture). Different devices have different requirements for compatible data lines. You can adjust it manually or contact us for customization. Applicable equipment: APC Automatic Switch: AP7721, AP7723, AP7730, AP7732, AP7752. APC Rack PDU: P78xx, AP79xx, AP86xx, AP88xx, AP89xx Output for output with switching rack PDU: AP8632, AP8641, AP8653, AP8659, AP8659EU3, AP8659NA3, AP8661, AP8681. Measured Rack PDU: AP7152, AP7155, AP7175, AP7800, AP7801, AP7802, AP7802J, AP7811, AP7820. Measured rack PDU with outputs: AP8441, AP8453, AP8459EU3, AP8459NA3, AP8459WW, AP8461, SPD10K. Switched rack PDU: AP7900, AP7901, AP7902, AP7902J, AP8930J, AP8931, AP8932, AP8930. List of supported systems: Windows 7, 8, 10. 2. Various Linux OS and Mac OS. Packing list: 1 x SH-RJ12 USB to RJ12/RJ11 serial cable (5.9 feet). 1 x user manual (English language not guaranteed). GUARANTEE: DSD TECH provides 1 year warranty and lifetime technical support for this USB to RJ12/RJ11 serial cable. If you have any questions, please contact us. We will fix your problem within 24 hours.

• Compatibility: This cable is compatible with Windows 7, 8, 10 and various Linux OS and Mac OS
• Warranty:DSD TECH provide a 1 year warranty and lifetime technical support for this USB to RJ12/RJ11 Serial Cable.if you have any questions, please feel free to contact us. We will respond within 24 hours.
