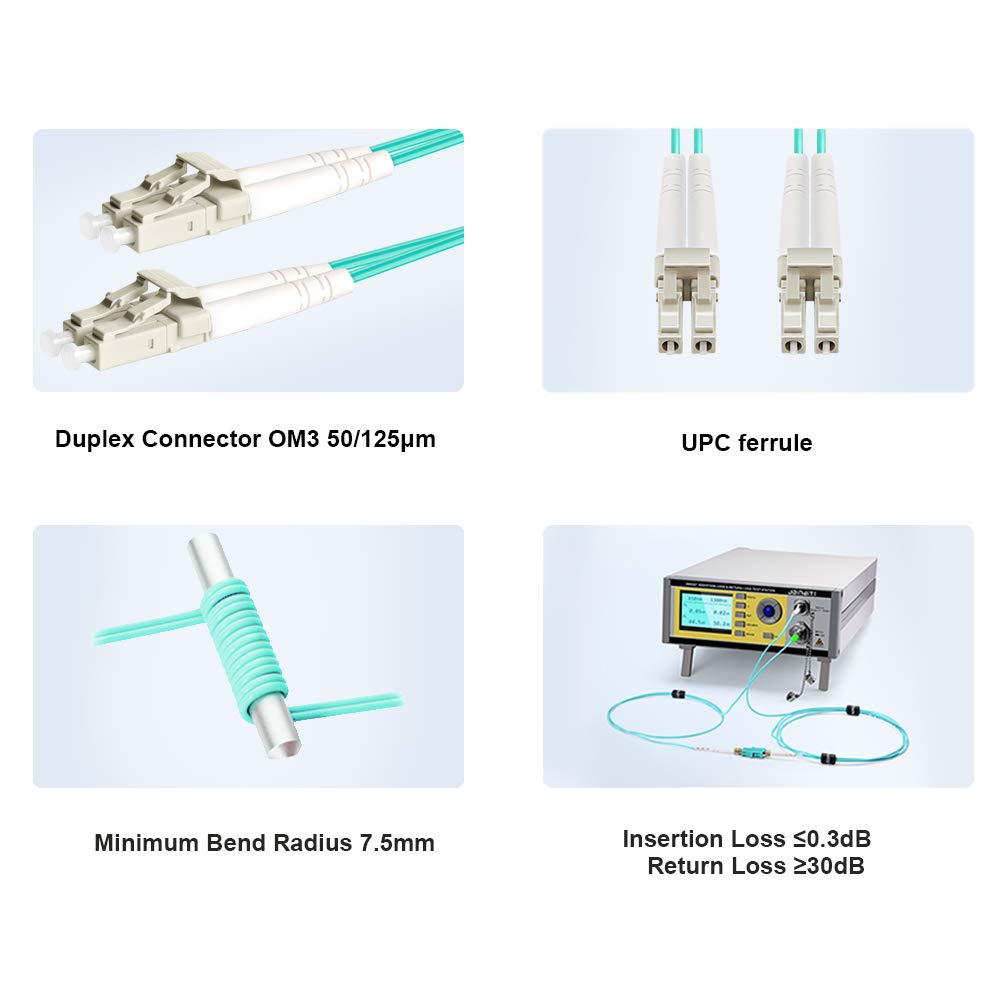

Product Name OM3 LC-LC Fiber Optic Patch Cable 5M(16FT) 10Gb Multimode Fiber Optic Cord (MMF) 50/125um LSZH Duplex UPC 2.0mm Aqua Size: 5M(16FT) (included Connector) Manufacturer: FLYPROFiber CABLE SPECIFICATIONS: Fiber Core: High Rated 50/125um Fiber and Cladding Ferrule Material: Ceramic Connectors: Duplex LC-LC Polish Type: UPC to UPC Fiber Type: OM3(Laser-optimized) Multimode Cable Jacket: LSZH Cable Diameter: 2.0mm Cable Color: Aqua Minimum Bend Radius: 7.5mm Operating Temperature: -20~70°C Wavelength: 850nm and 1300nm 1G Ethernet Max Distance: 550 Meters at 850nm 10G Ethernet Max Distance: 300Meters at 850nm 40G Ethernet Max Distance: 300Meters at 850nm 100G Ethernet Max Distance: 200Meters at 850nm Bandwidth: 2000 MHz·km @850nm Insertion Loss: ≤0.3dB Return Loss: ≥30dB Attenuation at 850nm: 3.0 dB/km Attenuation at 1300nm : 1.0 dB/km ADVANTAGES Plug and play cables save time in the field since there is no onsite termination necessary. The 50/125μm OM1 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It's a long term, cost effective solution to securely transmit data requiring high transfer rates. APPLICATIONS Computer Networking - Transfers data at a higher rate of speed. Military and Defense - Transmits data signals more clearly. Telecommunications - Carries data to internet, cable TV and phone subscribers at greater bandwidths. FLYPROFiber cables are compatible with all makes and models of switches, routers, enclosures, patch panels, media converters, SFP modules and other network components.

• 📡Construction Design - LSZH environmentally friendly Jacket; Adjustable connector clips allow individual fiber access; Embossed A/B position labels on the duplex clip and jacket tag rings labeled 1 & 2 provide quick identification of Tx and Rx when installing, testing, and troubleshooting equipment connections; UPC polish and Japan made zirconia ceramic ferrules with high return loss, low insertion loss, and low attenuation features, provide precise alignment to ensure the signal integrity.
• FLYPROFiber has been focusing on fiber optics for 15 years. Each cable is tested in the factory to meet quality control and insertion loss requirements, providing customers with high-quality products. We also have a professional customer service team. If you have any questions, please contact us promptly.
