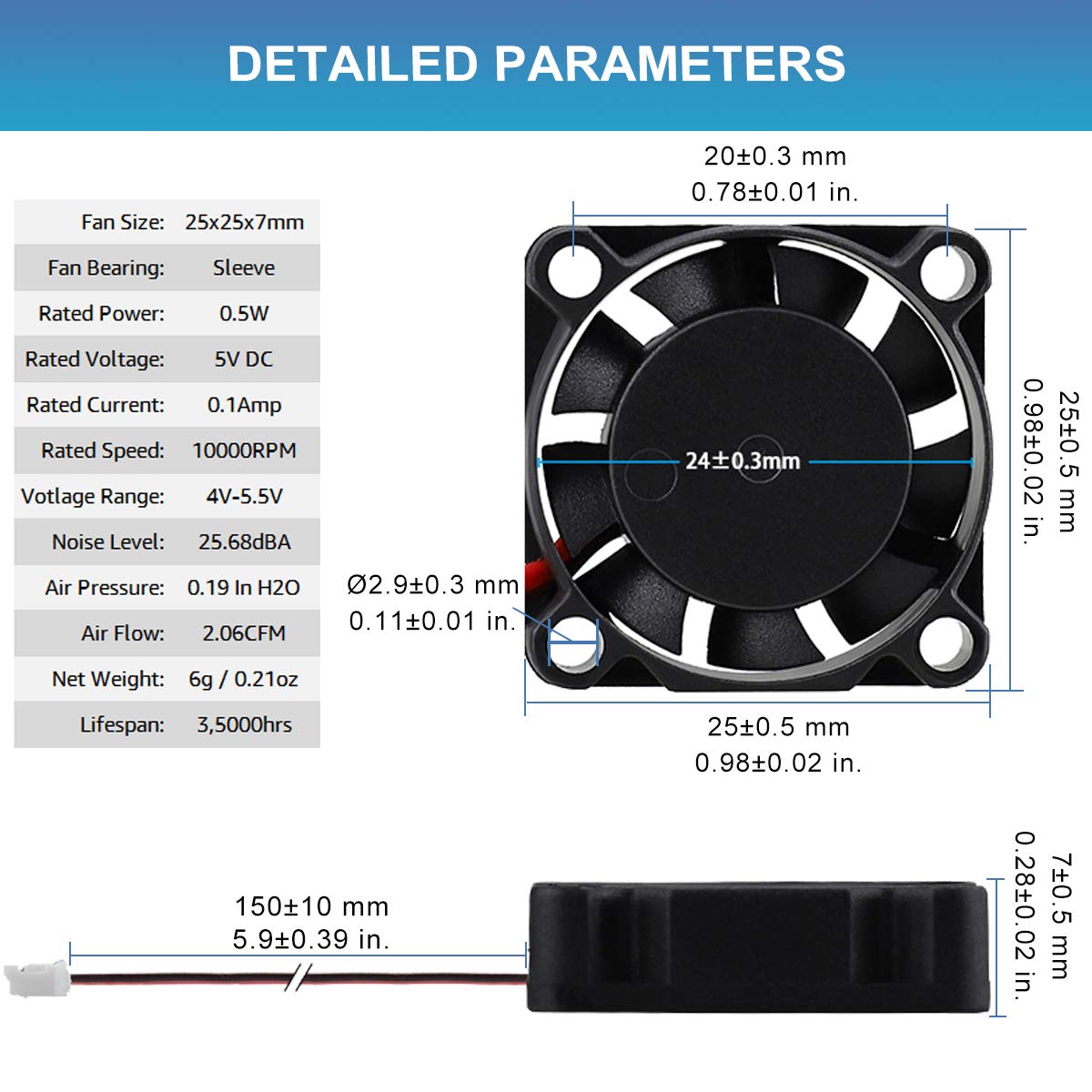

Product Dimensions: Total Size: 0.98 x 0.98 x 0.28 in. (25 x 25 x 7 mm) Hole Distance: 0.78 x 0.78 in. (20 x 20 mm) Screw Hole Size: Ø 0.11 in. (Ø 2.9 mm) Fan Connector: PH2.0-2Pin Lead wires: Red +,Black -, 150 mm/5.9 in. length Fan Bearings: Sleeve Life Expectancy: 35000 hrs at 25 degree test Specifications: Start-up Voltage: 3.5V Rated Voltage: 5V DC Rated Current: 0.1 Amp Rated Power: 0.5 W Rated Speed: 10000 RPM ±10% Fan Air Flow: 2.06 CFM ±10% Noise Level: 25.68 dBA ±10% Air Pressure: 0.19 In H₂O Operating Voltage: 4V to 5.5V Operating Temperature: -10℃-75 ℃ Storage Temperature: -40℃-80 ℃ Net Weight: 6g / 0.21oz Packing Contain: 2x DC brushless cooling fan 8x Mounting screws & nuts Note: 1.Transition: 1cm=10mm=0.39 in. 2.Please allow 0-1cm error due to manual measurement. please make sure you do not mind before you ordering.

• Ideal Replacement: Designed for ventilation of sensor, aroma diffuser, humidifier, LEDs, raspberry Pi, depilator, haze mask or other DIY projects
• What You Get: 2x DC Brushless Micro Fan (25mm); 8x Mounting Screws and Nuts
