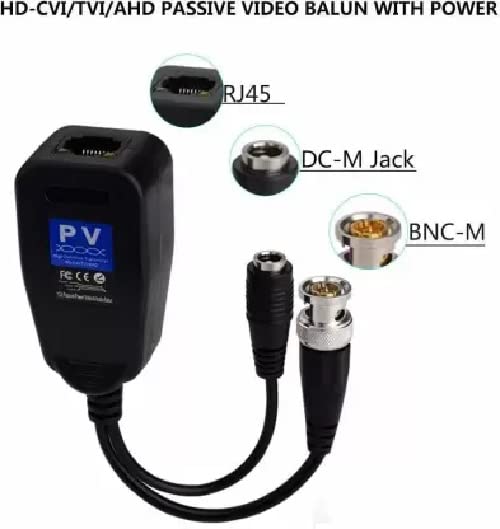

Video Balun HD-CVI/TVI/AHD UTP Passive Video Balun with DC Power Connector and RJ45 UTP CAT5e/Cat6 Transmitter/Receiver Features: 100% brand new and high quality Compatible with all HD-CVI, HD-TVI,HD-AHD Up to 450m for 720P CVI Cameras Up to 250m for 1080P CVI Cameras Up to 250m for 720P/1080P TVI Cameras Up to 320m for 720P AHD Cameras NTSC,PAL, and SECAM video formats No Power Required 60dB cross talk and noise immunity Compact size and easy installation Built-in transient suppression protection Innovative combinabie design Technical Specifications: Frequency response: DC to 60Mhz Attenuation: 0.5dB type CMRR: 60dB Surge Protection: 4KV ESD: 8KV Connectors: Male BNC and "Prees-Fit" Terminal blocks Impedance: BNC: 75ohmas Terminal: 100ohms Working Temperatrue: -10 to + 70 Storage Temperature: -30 to +70 Humidity: 0 to 95% Dimension:45*25*21mm with 14cm cable Material: ABS Plastic
- Passive RJ45 CCTV Video Balun Transceiver Supply Power.
- Compact size and easy installation Built-in transient suppression protection Innovative combinabie design.
Specifications
| Brand Name | MakWorld |
| Manufacturer | Mak World |
| Item Type | Surveillance Camera Cables · Home Improvement |
| Shipping Weight | 100 g |
| Package Dimensions | 25.4 × 25.4 × 12.7 cm |
| Category | Home Improvement › Safety & Security › Home Security Systems › Surveillance Video Equipment › Surveillance Camera Cables |
| Category Rank | #187,626 in Home Improvement |
| Marketplace Rating | 4.2 out of 5 (7 ratings on the source marketplace) |
| Attributes | Video Balun with DC Power and… · HD-CVI/TVI/AHD UTP Passive… |
