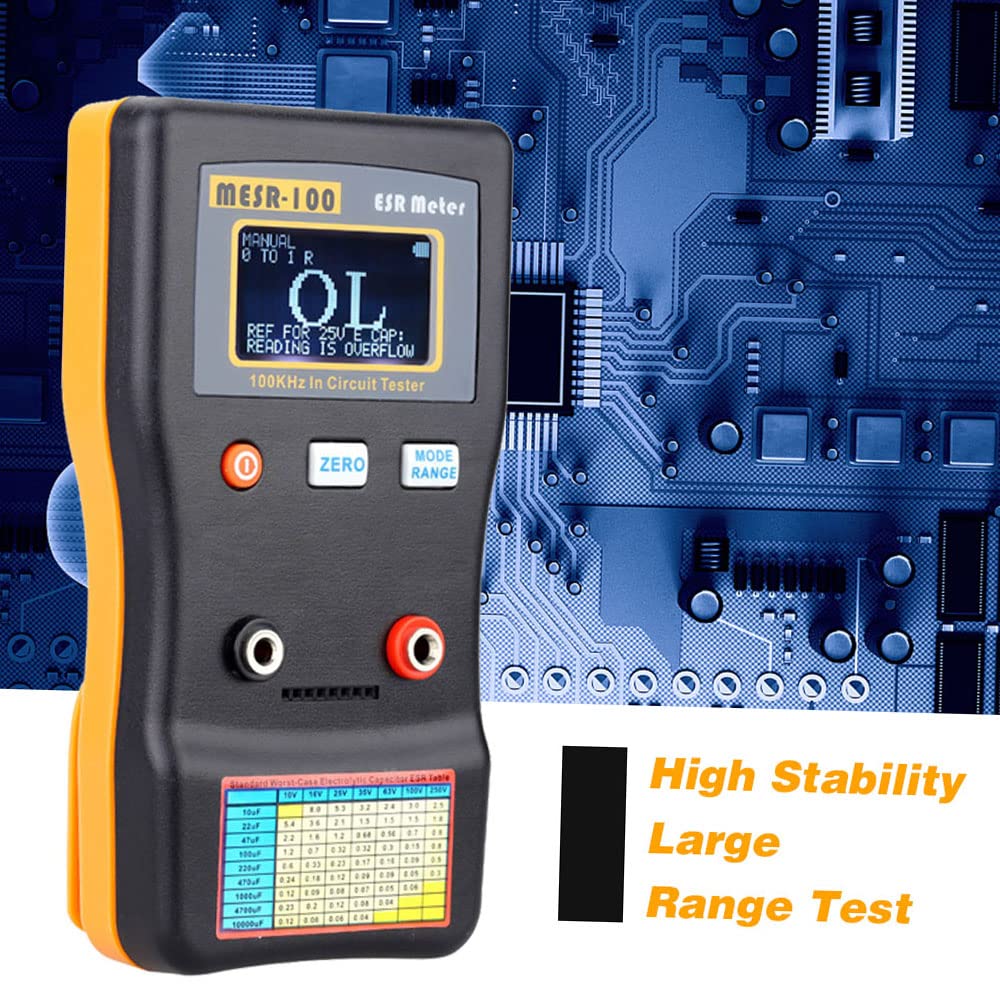

This MESR-100 V2 auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.0R, support in circuit testing. Using true 100 KHz sine w-ave to measure the ESR value, which is equal to the testing method of capacitor manufacturer. Features: It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C). Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test. During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not. Specifications: Range Accuracy(After zero, Refresh Time(Manual Mode) tested with 1,10,100R Auto mode take 0 to 2s, more time resistor) depends on capacitance value. 0.000 to 1.000R 1%+2Digit ～0.4s 1.000 to 10.00R 1%+1Digit ～0.4s 10.00 to 100.0R 2%+1Digit ～0.4s Accuracy: Up to 1% (detail on above table) Wide Measurement Range: >1uF High Resolution: 4 digit, or 0.001Ohm @ 1 Ω range Measuring voltage: <～40mV RMS (TESTING VOLTAGE) External Power: 5V micro USB Operating Current: 0.02A Battery: 2 * AA 1.5V Battery (not included) Battery Life time: >80 Hours Package List: 1 * Capacitance Meter 2 * Test Clips 1 * SMD Clip 1 * User Manual Note: The Capacitance Meter is used for testing the internal resistance of the capacitor, not for testing capacitance value.

• During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.【Note:The Capacitance Meter is used for testing the internal resistance of the capacitor, not for testing capacitance value.】
• Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.Equipped with a SMD alligator clip for more accurately testing.
