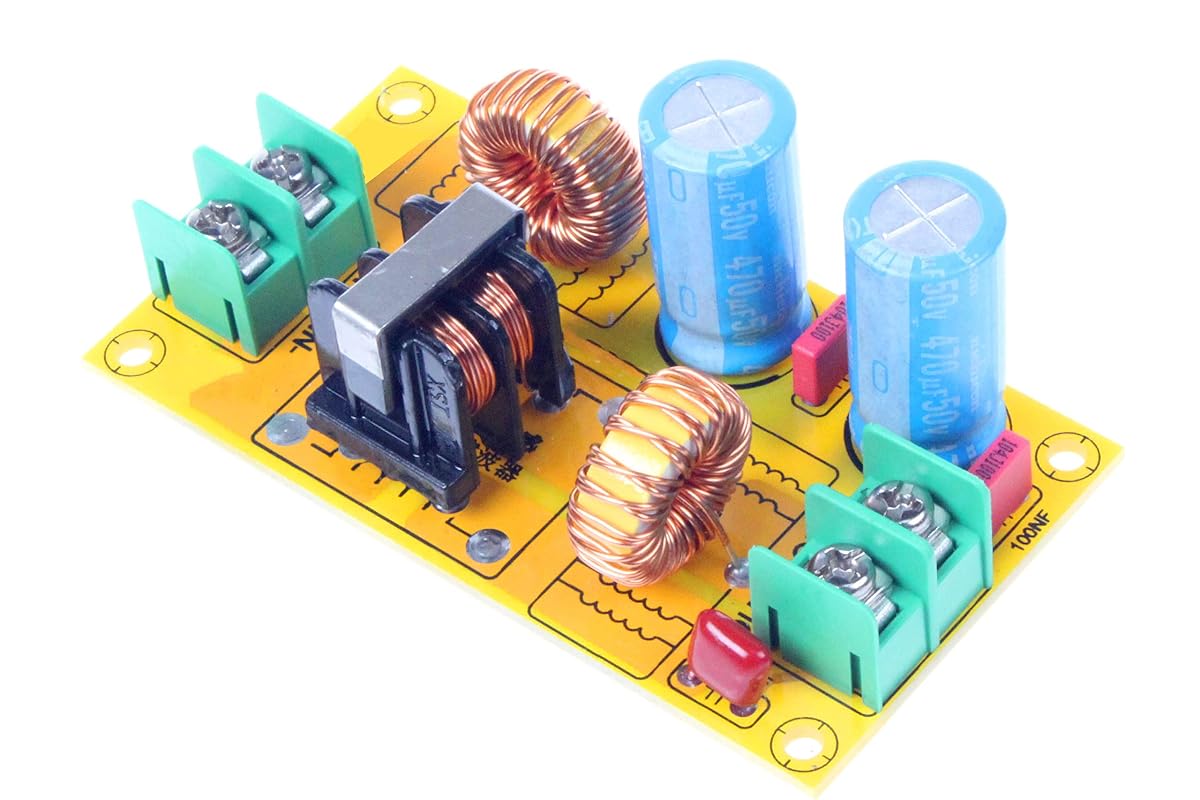

Product Description Introduction of NOYITO DC power filter circuit: The circuit consists of three parts, the first part is a one-stage LC filter circuit, the second part is a common mode EMI filter, and the third part is a two-stage LC filter circuit. LC filter: generally known as passive filter, it is a traditional DC power harmonic compensation device composed of inductors and capacitors, which can filter out harmonics in the power supply one or more times and purify the DC power supply. Common mode filtering: It can suppress the problem of fast transient group interference with a repetition frequency of several kilohertz in some user sites. One year after-sale warranty. DC EMI Power Filter Parameters * Product name: NOYITO DC LC Filter DC EMI Power Filter * Input voltage: DC 0 - 50V. * Output voltage: DC 0 - 50V. * Load rated current: 2A/4A/10A/20A. * Input port: IN+ / IN- (two-wire 7.62 terminal block input). * Output port: OUT+ / OUT- (two-wire 7.62 terminal block output). * Color: Yellow PCB board /green binding posts. * Electrolytic Capacitor: 50V 470UF / 2 PCS. * Film Capacitor: 100NF 2PCS / 470 PF 1PCS. * Magnetic ring inductance: 2PCS (20A high current selects iron silicon aluminum). * Common mode inductance; 1PCS (20A high current use flat copper tape inductance). * Mounting hole spacing: 70.3x35.3mm (LW) * Mounting hole diameter: 3mm. * Product size: 77x42x27.5mm (LWH) * Product weight: 2A Version -50.5 grams 4A Version - 73.8 grams 10A Version - 75.3 grams 20A Version - 85.6 grams Packge Included: 1pcs NOYITO DC LC Filter DC EMI Power Filter Board
- Load rated current: 2A / 4A / 10A / 20A.
- 【INPUT Port: IN+ / IN- (two-wire 7.62 terminal block input).】
- 【OUTPUT Port: OUT+ / OUT- (two-wire 7.62 terminal block output).】
- If the module is under high load and high current for a long time, the heat dissipation of the module must be strengthened. Especially for the 10A and 20A versions, when the load current exceeds 50% and above, it is necessary to strengthen the heat dissipation, such as adding cooling fans.
