Key Features 4 KV Ethernet surge protection, adapt to a hardened outdoor environment; Support Auto MDI/MDIX; Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard ; IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant; A store-and-forward switching mechanism; Specification Product Name: 10/100/1000Mbps Industrial Grade Fiber Switch (1F+4TP) Model No.: IM-FS140GE Fiber Port: 1 x 1000Mpbs SFP uplink port,SM,1310nm,20Km Ethernet Port: 4x10/100/1000M UTP RJ45 Switching features: Transmission mode:storage and forward ;System bandwidth：40Gbps (non-traffic jam) Network media: 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX:CAT5 or above shielded twisted pair(≤100m) Transmission distance: 20Km LEDs: Power, network, fiber Power supply:Input voltage:DC 9-52V ; No-load power：5W; Reverse connection: support Environment:Working temperature：-40°～ 85°C; Storage temperature：-40°～ 85°C Working humidity：10%～90%,non-condensing Storage humidity：10%～95%,non-condensing Safety: CE Mark ,commercial ; CE/LVD EN60950 Mechanical information: Shell:Corrugated metal housing Safety class: IP40 Dimension: 4.48 x 3.66 x 1.37inch Mounting method:Din-rail mounting Warranty Replacement within 1year; 5 years repairing

• Safety, Installation& PowerSupply: Meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. Commercial CE/LVD EN60950. Redundant dual DC input power, DC 9-36V Input voltage (Power supply is sold separately).

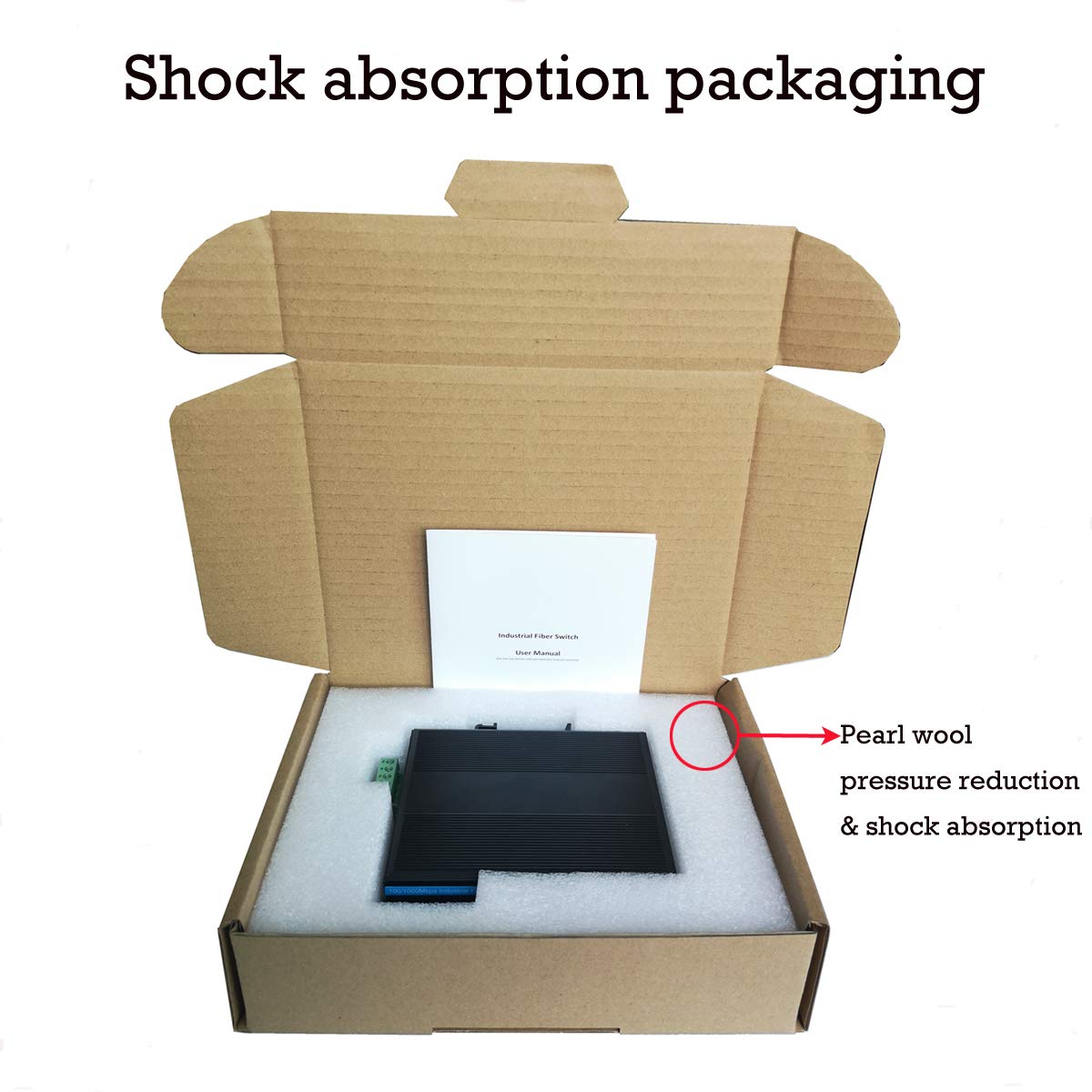

• What you get: 1pc Mini 5-port hardened gigabit din-rail switch,1pc 1.25Gb SFP module and 1 User Manual, Replacement within 1 year and 5 years repairing.
