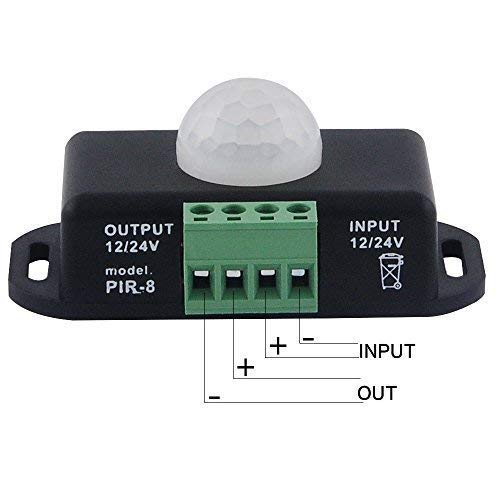

Great for small 12 volt DC solar panel LED Lighting systems to conserve battery power; also well suited for occupancy LED lighting control and security LED Lighting systems. See the additional information and specification sheet in our listing pictures for more details. Specifications: Power supply voltage: 12-24V Output voltage: 12-24V Max load current: 6A Induction range: 8m Delay time: 1-10min (adjustable) Working temperature: -20-60 degrees Celsius Direction for use: The human body induction switch is a kind of infrared detection controller, adopt infrared detection way to control load switch. Users can according to actual needs, installed the human body sensors in the appropriate environment. Connect the load wire at first, following by the power wire; Please ensure short circuit cannot occur between connecting wire before you turn on the power; When detected somebody, the load light will bright, when people leave time up to the setting of the delay time, the load lights will automatically turn off. Controller signal output line and input line should be connected correctly. Package including: 1 x PIR Switch 1 x Manual sheet

• PIR (Passive InfraRed, IR) sensor has an effective range of 16 feet and diminished sensing of a moving human body to 8 meter
• The field of view of the PIR Dome Lens is 60 degrees nominal
