1.9Nm(269oz.in) holding torque
Single Shaft 6.35mm diameter
NEMA 23 bipolar 2.24"x2.24"x3.0" 4-wire
ABOUT THIS FIND

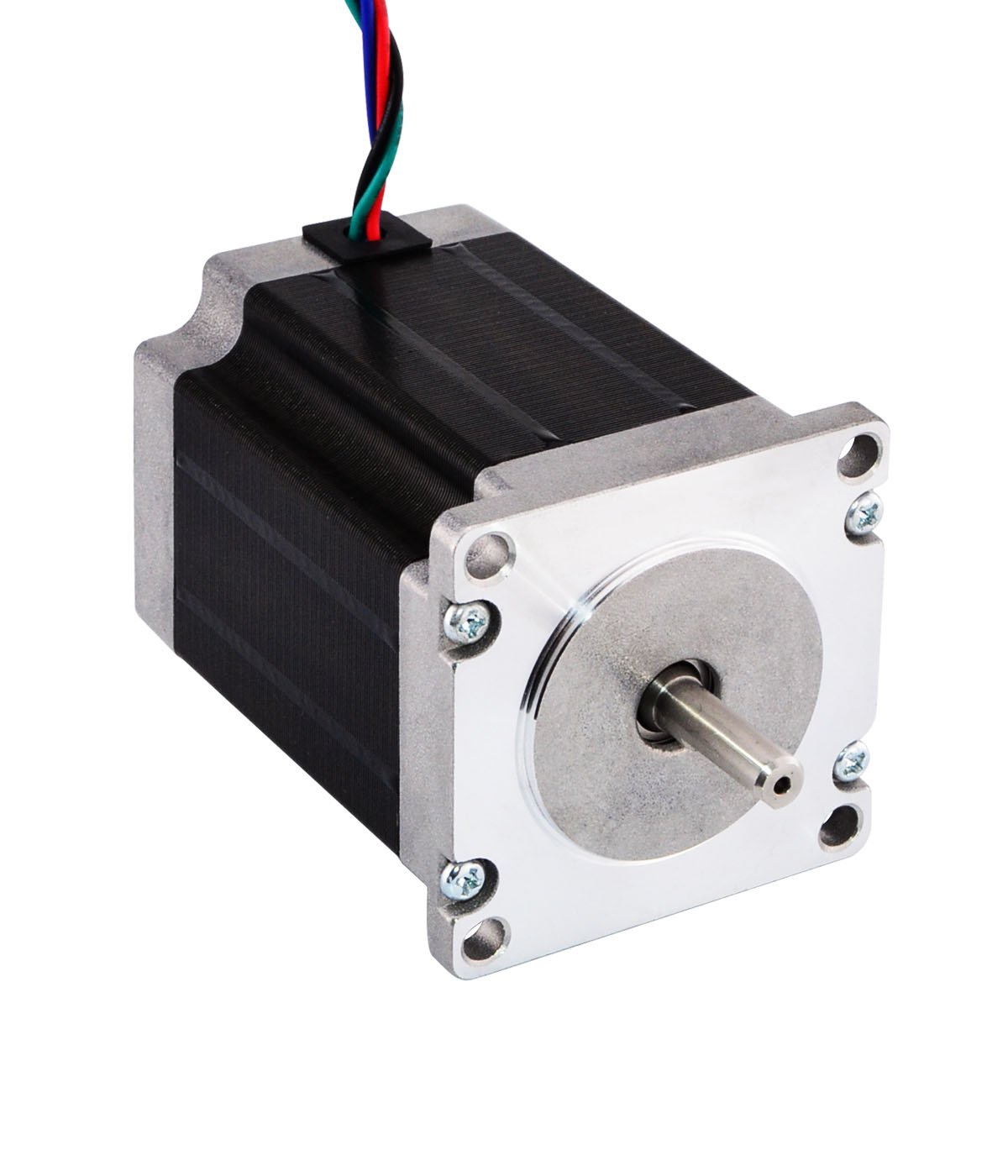

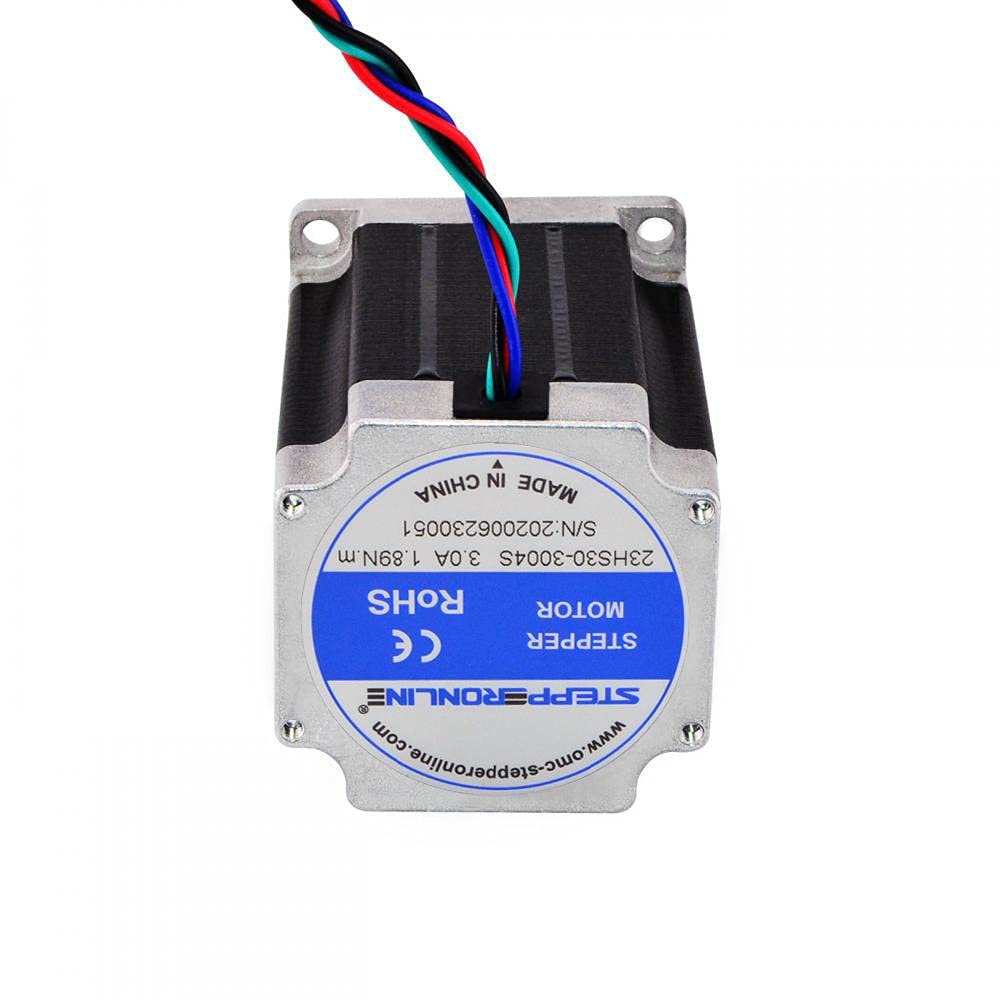

This is one of the most popular Nema 23 stepper motor, it with step angle 1.8deg and size 57x57x76mm. It has 4 wires, each phase draws 3A, with holding torque 1.9Nm (269oz.in). Electrical Specification *Manufacturer Part Number: 23HS30-3004S *Motor Type: Bipolar Stepper *Step Angle: 1.8 deg *Holding Torque: 1.9Nm(269oz.in) *Rated Current/phase: 3A *Voltage: 3.36V *Phase Resistance: 1.12ohms *Inductance: 4.8mH ± 20%(1KHz) Physical Specification *Frame Size: 57 x 57mm *Body Length: 76mm *Shaft Diameter: Φ6.35mm *Shaft Length: 21mm *D-cut Length: 15mm *Number of Leads: 4 *Lead Length: 500mm *Weight: 1.2kg Connection: Black: A+, Green: A-, Red: B+, Blue: B-
- 1.8 deg. step angle(200 steps/rev)
- Rated current 3.0 A& resistance 1.12ohms
Specifications
| Brand Name | STEPPERONLINE |
| Manufacturer | STEPPERONLINE |
| Item Type | 3D Printer Motors · Industrial & Scientific |
| Shipping Weight | 1.12 kg |
| Package Dimensions | 13.6 × 10.7 × 8.4 cm |
| Category | Industrial & Scientific › Additive Manufacturing Products › 3D Printer Parts & Accessories › 3D Printer Motors |
| Category Rank | #244,140 in Industrial & Scientific |
| Marketplace Rating | 4.6 out of 5 (82 ratings on the source marketplace) |
| EAN | 0715776363081 |
| UPC | 715776363081 |
| Attributes | Single Shaft 6 · NEMA 23 bipolar 2 |
Common questions
STEPPERONLINE
STEPPERONLINE Nema 23 Stepper Motor 3.0A 269oz.in/1.9Nm 76mm Length Step Motor for CNC Mill Lathe Router
★ 4.682 marketplace ratings
US$ 141.99-23%23% OFFregular price reg. US$ 183.99
You save US$ 42.00 off the regular price
Product price in USD · shipping & import duty for your country are calculated at checkout
● In stock
Delivery Sep 16 – Sep 23 to United States
1
Single Shaft 6NEMA 23 bipolar 2
