(1) TB6600 Stepper Motor Driver: Single chip bipolar sine microstep stepper motor driver. New BiCD 0.13 nm process. Up to 42V. 5 subdivision mode options (1/1, 1/2, 1/4, 1/8, 1/16,1/32). Output current: IOUT = 4.0A (peak, in 100ms). rated output: IOUT = 3.5 A Resistance (a +) = 0.4 Alarm output pin current:Ialert = 1mA Monitoring output pin (MO): Imo= 1mA Break through the traditional, single power supply. Built in overheating protection (TSD) circuit. Undervoltage protection, built-in (UVLO) circuit. Built-in overcurrent detection (ISD), circuit. Can control 2 phase stepper motor forward and reverse rotation, With 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode. (2) Nema 17 Stepper Motor: Motor type: Bipolar Stepper Phase Resistance: 1.5Ohm Phase Inductance: 2.8mH Detent Torque: 2.2N.cm Rotor Inertia: 54g.cm2 Holding Torque: 40N.cm Step angle: 1.8 deg Motor Weight: 280g Step angle accuracy: + - 5%(full step, not load) Resistance accuracy: + - 10% Inductance accuracy: + - 20% Temperature rise: 80deg Max(rated current, 2 phase on) Ambient temperature: —20deg ~+50deg Insulation resistance: 100MΩ Min, 500VDC Insultion Strength: 500VAC for one minute Connection: Red(A+), Green(A-), Yellow(B+), Blue(B-) Package Included: 1 x TB6600 Motor Driver 1 x Nema 17 Motor 1 x Mounting Bracket 4 x M4 Screws 4 x M3 Screws 2 x Inner Hexagon Spanner Tips: Please make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor. Only the clock pulse signal can be driven two-phase bipolar stepper motor to achieve low vibration, high efficiency work.

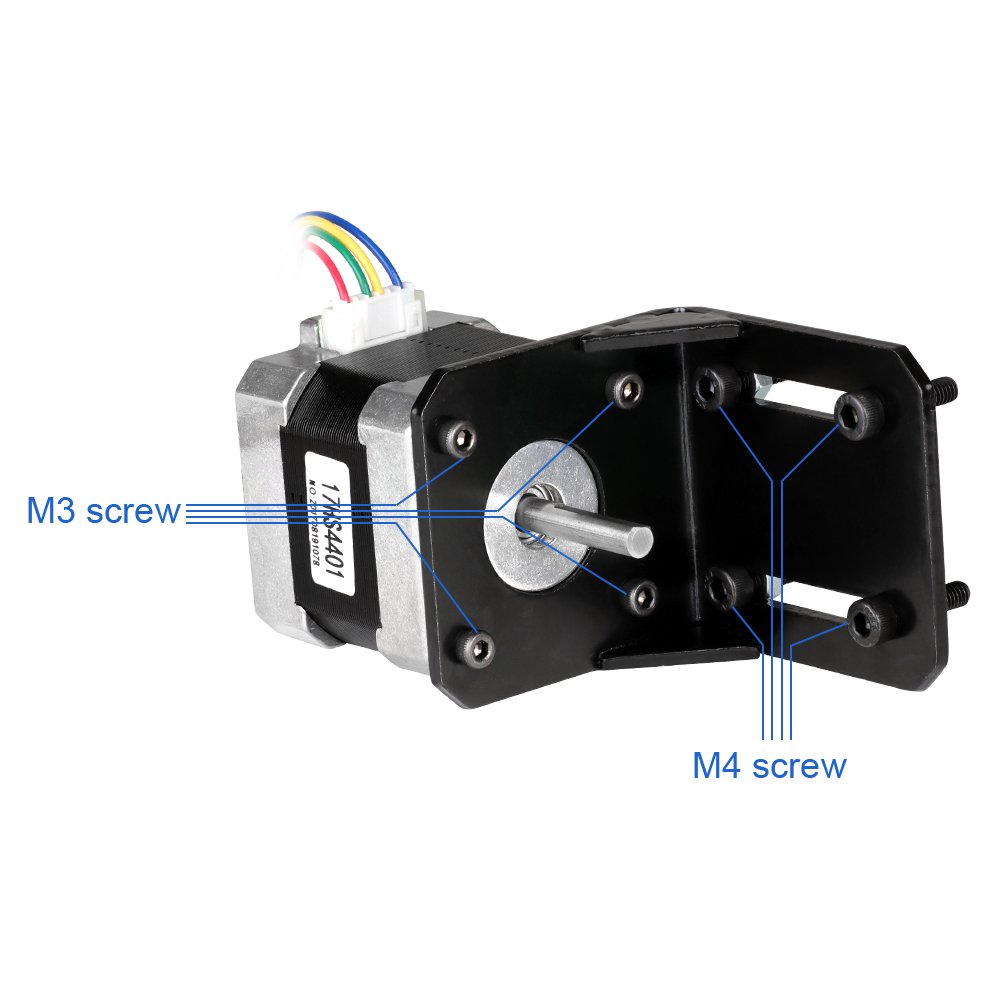

• Package: TB6600 stepper motor driver + nema 17 stepper motor + mounting bracket + inner hexagon spanner + M3/M4 screws
• Strive for 100% service satisfactory, any question or problem please do not hesitate to contact us, we are always happy to help.
