Kindly Note Generally, it is suggested to put the TC196 WiFi controller nearby the WiFi router for a better network connection. The distance between the WiFi controller and the router should be within 50 feet. The WiFi remote controller only supports 2.4GHz WiFi. The TC196 WiFi controller can be installed maximum 750 feet away from the gate/door opener. The power input of the WiFi controller is 9-24 VAC/DC, and the included 100-240VAC power adapter can be plugged directly into the home socket. The WiFi controller can also be powered by AC-DC power supply, battery or transformer. Once the controller is added by one user, the other users can only be shared by the primary account to get control access. One TC196 controller can be shared with up to 40 users, and up to 50 WiFi controllers can be added by one user. Specifications Network Connection for the WiFi Remote Controller: 2.4GHz WiFi Network Connection for Smartphone: 3G/4G/5G/WiFi Smartphone Compatibility: iOS, Android Frequency: 433.92MHz, TOPENS Rolling Code Power Input of the WiFi Remote Controller: 9-24VAC/DC (100-240VAC Power Adapter Incl.) Working Temperature: 0°F to 120°F (-20℃~ +50℃) Protection Degree of the WiFi Remote Controller: IP55 Protection Degree of the Power Adapter: Not Waterproof Dimension of the WiFi Remote Controller: 4.5 x 2.2 x 1.3” (115 x 55 x 34mm) Dimension of the Power Adapter: 2.8 x 1.6 x 1.6” (70 x 40 x 40mm) What’s in the Box? 1 x WiFi Remote Control With Power Adapter 1 x TOPENS User Manual

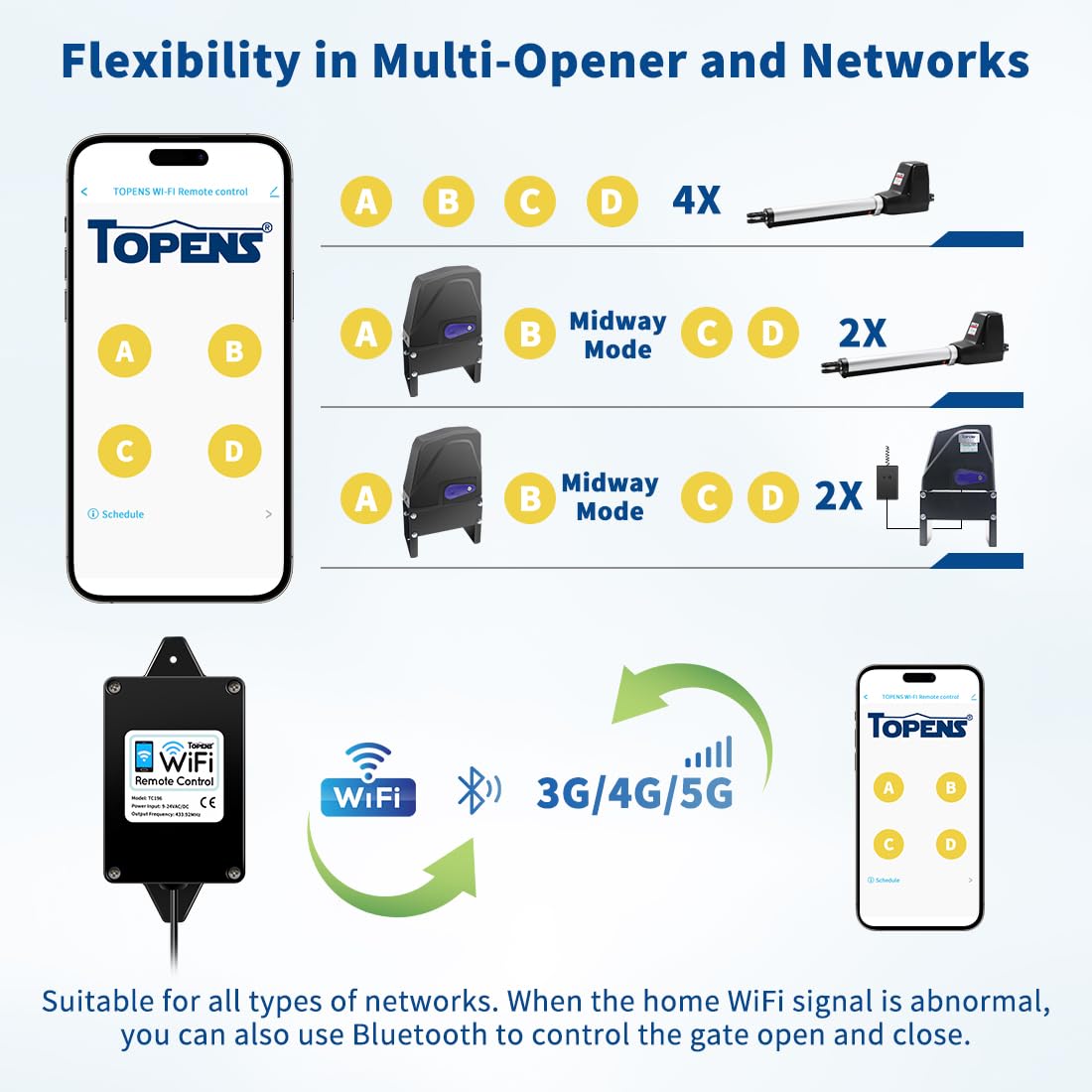

• Wide Compatibility - Works with all TOPENS gate openers. For third-party gate opener or garage door opener, the control board must link to our ERM12 External Receiver (sold separately), and additionally accept the "Normally Open Dry Contact" signal for the push button. The ERM12 can be powered by 9-24VDC from the control board or external power source. Kindly note that the TC196 controller works with the gate/garage door openers only, and does not support other smart home systems.
• Customer Service and Technical Support - All the TOPENS products come with a 12-month war-ranty against defects, a 30-day exchange & return and excellent tech support. Visit TOPENS website for the user manual, installation video, and personalized service. TOPENS is ready to offer professional solutions for any questions or assistance. Enjoy an easier and smarter life by ordering other TOPENS accessories.
