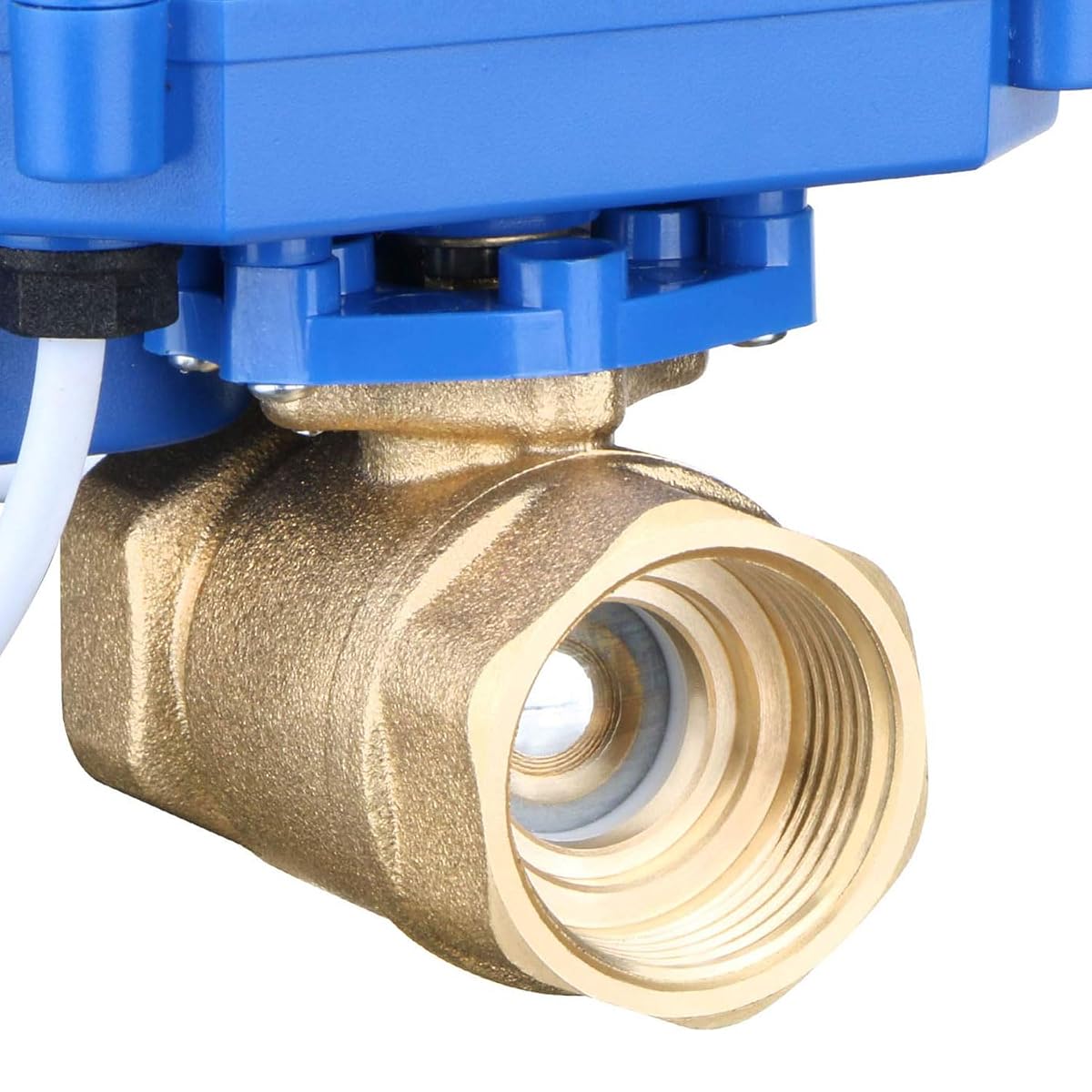

The U.S. Solid 3/4 in brass motorized ball valve is an electric 2-way shut-off valve for automatic on/off control of water, air, gas, and oil lines; its standard-port, reduced-bore design gives controlled flow in a compact body. The forged brass body with PTFE and silicone seats suits HVAC, irrigation, and general fluid control; the brass body contains lead and is not suitable for drinking water. Running on 9 to 24 V AC/DC at just 2 W, the motor drives fully open or closed in under 8 seconds with 2.5 Nm of torque; once positioned, an internal limit switch stops the motor, so it draws little current with minimal heat, unlike an always-energized solenoid valve. The 3-wire latching control holds the valve at its last position when power is removed, and a manual override lets you turn the valve by hand during setup, testing, or a power outage. The IP65-rated enclosure seals against dust and water spray. Specifications: Brand: U.S. Solid Size: 3/4 in Valve Material: Brass Seal: PTFE, Silicone Bore Type: Standard Port Thread Type: NPT Wiring Type: 3-Wire Latching Working Voltage: 9-24 V AC/DC Max Power: 2 W Operating Time: under 8 s Max Torque: 2.5 Nm Operating State: Latching (holds last position on power loss; non-return) Manual Override: Included Flow Medium Temperature: up to 100°C (212°F) Ambient Temperature: up to 40°C (104°F) Enclosure Rating: IP65 Life Expectancy: 80,000-100,000 cycles Suitable Media: Air, Gas, Oil, Water Note: The brass body contains lead and is not suitable for drinking water applications.

• 3-WIRE LATCHING CONTROL: The 3-wire hookup drives the valve open or closed and it holds its last position when power is removed, so it stays put with no continuous power draw, a low-heat alternative to an always-energized solenoid
• MANUAL OVERRIDE AND POSITION INDICATOR: A manual override turns the valve by hand during a power outage, and a visual position indicator shows open or closed at a glance; IP65 rated with PTFE and silicone seats for 80,000 to 100,000 cycles
