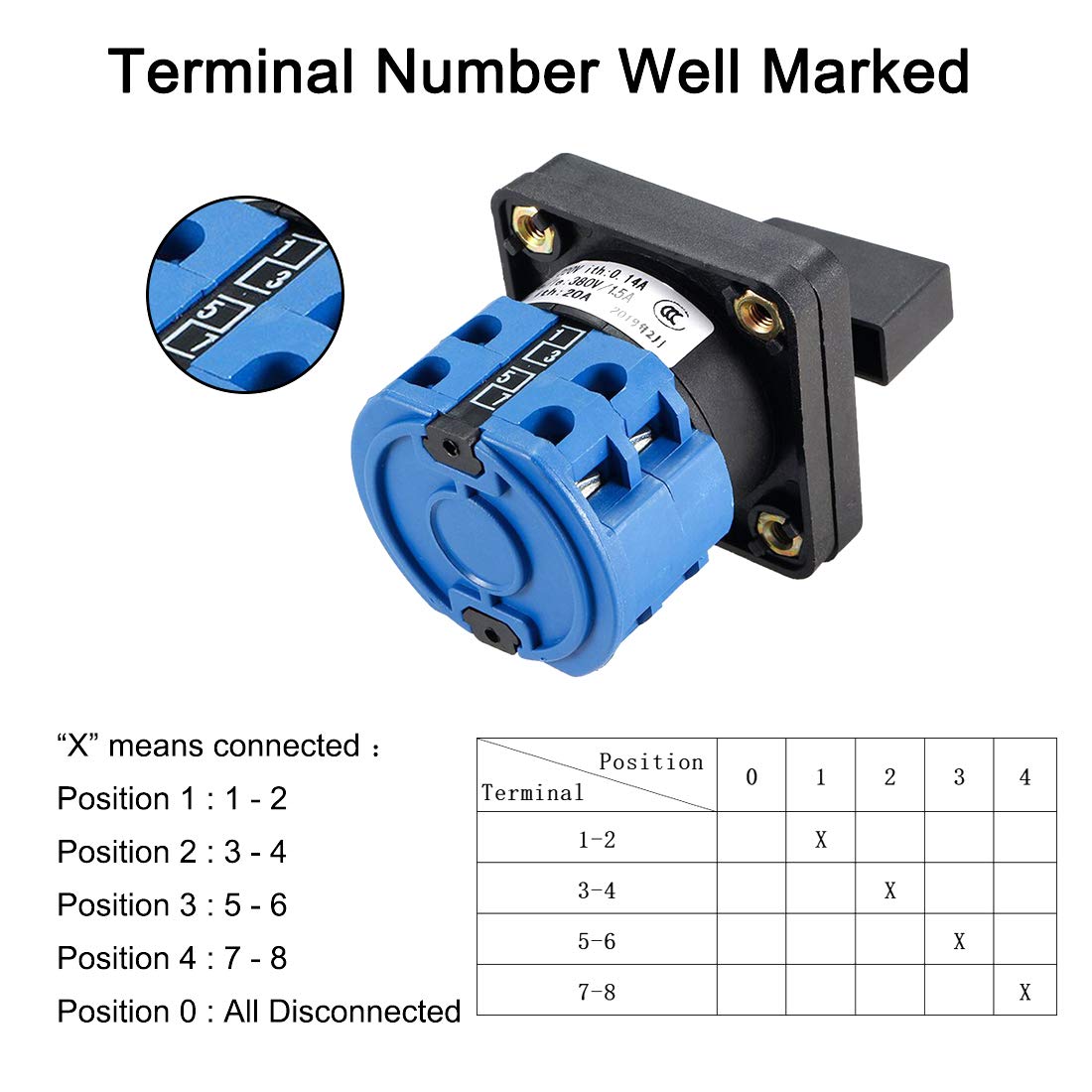

Description 1. Suitable for the thickness between 1mm to 5mm of the mounting board. 2. Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit. 3. Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment. Specifications Model: SYW28-20.0-4.2 Positions: 5 Terminals: 8 Ui: 550V Ith: 20A Action Type: Latching Positioning angle: 0-45-90-135-180 Degree Rating: DC-13: Ui: 220V, Ith: 0.14A; AC-15: Ue / Ie: 380V / 1.5A Mounting Hole Distance: 36mm x 36mm / 1.42inch x 1.42inch (L*W) Total Size: 49mm x 49mm x 100mm / 1.93inch x 1.93inch x 3.94inch (L*W*H) Package Content 1 x Changeover Switch 4 x Mounting Screws

• ☀WIDE APPLICATION RANGE: Ideal for electrical wiring in the power switch, speed switch and induction motor, also can make the conversion of the control circuit.
• ☀WHAT YOU GET: 1pcs x Changeover Switch, 4pcs x Screws. Technical parameters as images show. If you have any question, please feel free to contact us !

Specifications

Common questions
